用 Ionic Angular 构建一个用户管理应用

本教程演示了如何构建一个基本的用户管理应用。该应用可以进行用户认证和识别，将用户的个人资料信息存储在数据库中，并允许用户登录、更新他们的个人资料信息以及上传头像。该应用使用了：

🌐 This tutorial demonstrates how to build a basic user management app. The app authenticates and identifies the user, stores their profile information in the database, and allows the user to log in, update their profile details, and upload a profile photo. The app uses:

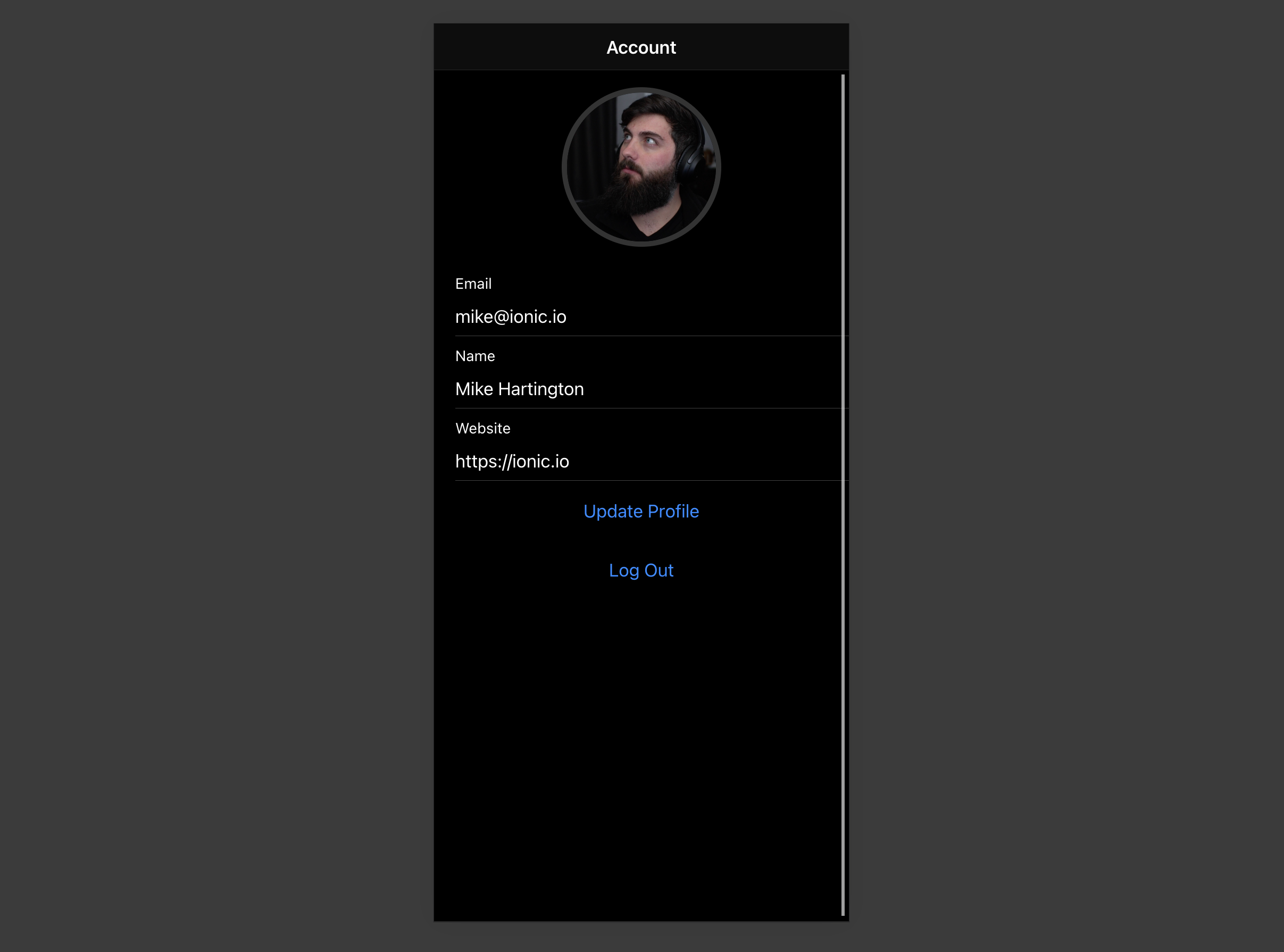

Supabase User Management example

项目设置 #

🌐 Project setup

在你开始构建之前，你需要先设置数据库和 API。你可以通过在 Supabase 中启动一个新项目，然后在数据库中创建一个“架构”来完成这一步。

🌐 Before you start building you need to set up the Database and API. You can do this by starting a new Project in Supabase and then creating a "schema" inside the database.

创建一个项目 #

🌐 Create a project

  1. 在 Supabase 仪表板中创建一个新项目。
  2. 输入你的项目详情。
  3. 等新数据库上线。

设置数据库模式 #

🌐 Set up the database schema

现在设置数据库模式。你可以在 SQL 编辑器中使用“用户管理入门”快速开始，也可以复制粘贴下面的 SQL 并运行。

🌐 Now set up the database schema. You can use the "User Management Starter" quickstart in the SQL Editor, or you can copy/paste the SQL from below and run it.

  1. 在仪表板中转到SQL 编辑器页面。
  2. 点击 社区 > 快速入门 标签下的 用户管理入门。
  3. 点击运行。

获取 API 详情 #

🌐 Get API details

要与数据库表中的数据进行交互，你可以使用封装了自动生成的数据 API 端点的客户端库，并使用来自项目 Connect 对话框的项目 URL 和密钥进行认证。

🌐 To interact with data in database tables, you use the client libraries that wrap the auto-generated Data API endpoints, authenticating using the Project URL and key from the project Connect dialog.

Project URL
Publishable key

正在构建应用 #

🌐 Building the app

从零开始构建 Angular 应用。

🌐 Start building the Angular app from scratch.

初始化一个 Ionic Angular 应用 #

🌐 Initialize an Ionic Angular app

使用 Ionic CLI 来初始化一个叫做 supabase-ionic-angular 的应用：

🌐 Use the Ionic CLI to initialize an app called supabase-ionic-angular:

1
npm install -g @ionic/cli
2
ionic start supabase-ionic-angular blank --type angular
3
cd supabase-ionic-angular

安装唯一的额外依赖： supabase-js

🌐 Install the only additional dependency: supabase-js

1
npm install @supabase/supabase-js

最后，将环境变量保存在 src/environments/environment.ts 文件中。你只需要之前复制的 API URL 和密钥 在这里。这些变量会在浏览器中暴露，这没问题，因为数据库上已经启用了 行级安全。

🌐 And finally, save the environment variables in the src/environments/environment.ts file. All you need are the API URL and the key that you copied earlier. These variables will be exposed on the browser, and that's fine as Row Level Security is enabled on the Database.

src/environments/environment.ts
1
// This file can be replaced during build by using the `fileReplacements` array.
2
// `ng build --prod` replaces `environment.ts` with `environment.prod.ts`.
3
// The list of file replacements can be found in `angular.json`.
4
5
export const environment = {
6
  production: false,
7
  supabaseUrl: '',
8
  supabasePublishableKey: '',
9
}
10
11
/*
12
 * For easier debugging in development mode, you can import the following file
13
 * to ignore zone related error stack frames such as `zone.run`, `zoneDelegate.invokeTask`.
14
 *
15
 * This import should be commented out in production mode because it will have a negative impact
16
 * on performance if an error is thrown.
17
 */
18
// import 'zone.js/dist/zone-error';  // Included with Angular CLI.
View source

既然你已经有了 API 凭证，使用 ionic g s supabase 创建一个 SupabaseService 来初始化 Supabase 客户端，并实现与 Supabase API 通信的功能。

🌐 Now that you have the API credentials in place, create a SupabaseService with ionic g s supabase to initialize the Supabase client and implement functions to communicate with the Supabase API.

src/app/supabase.service.ts
1
import { Injectable } from '@angular/core'
2
import { LoadingController, ToastController } from '@ionic/angular'
3
import { AuthChangeEvent, createClient, Session, SupabaseClient } from '@supabase/supabase-js'
4
import { environment } from '../environments/environment'
5
6
export interface Profile {
7
  username: string
8
  website: string
9
  avatar_url: string
10
}
11
12
@Injectable({
13
  providedIn: 'root',
14
})
15
export class SupabaseService {
16
  private supabase: SupabaseClient
17
18
  constructor(
19
    private loadingCtrl: LoadingController,
20
    private toastCtrl: ToastController
21
  ) {
22
    this.supabase = createClient(environment.supabaseUrl, environment.supabasePublishableKey)
23
  }
24
25
  get user() {
26
    return this.supabase.auth.getUser().then(({ data }) => data?.user)
27
  }
28
29
  get session() {
30
    return this.supabase.auth.getClaims().then(async ({ data }) => {
31
      if (!data?.claims) {
32
        return null
33
      }
34
35
      const { data: userData } = await this.supabase.auth.getUser()
36
      return userData?.user ? ({ user: userData.user } as Session) : null
37
    })
38
  }
39
40
  get profile() {
41
    return this.user
42
      .then((user) => user?.id)
43
      .then((id) =>
44
        this.supabase.from('profiles').select(`username, website, avatar_url`).eq('id', id).single()
45
      )
46
  }
47
48
  authChanges(callback: (event: AuthChangeEvent, session: Session | null) => void) {
49
    return this.supabase.auth.onAuthStateChange(callback)
50
  }
51
52
  signIn(email: string) {
53
    return this.supabase.auth.signInWithOtp({ email })
54
  }
55
56
  signOut() {
57
    return this.supabase.auth.signOut()
58
  }
59
60
  async updateProfile(profile: Profile) {
61
    const user = await this.user
62
    const update = {
63
      ...profile,
64
      id: user?.id,
65
      updated_at: new Date(),
66
    }
67
68
    return this.supabase.from('profiles').upsert(update)
69
  }
70
71
  downLoadImage(path: string) {
72
    return this.supabase.storage.from('avatars').download(path)
73
  }
74
75
  uploadAvatar(filePath: string, file: File) {
76
    return this.supabase.storage.from('avatars').upload(filePath, file)
77
  }
78
79
  async createNotice(message: string) {
80
    const toast = await this.toastCtrl.create({ message, duration: 5000 })
81
    await toast.present()
82
  }
83
84
  createLoader() {
85
    return this.loadingCtrl.create()
86
  }
87
}
View source

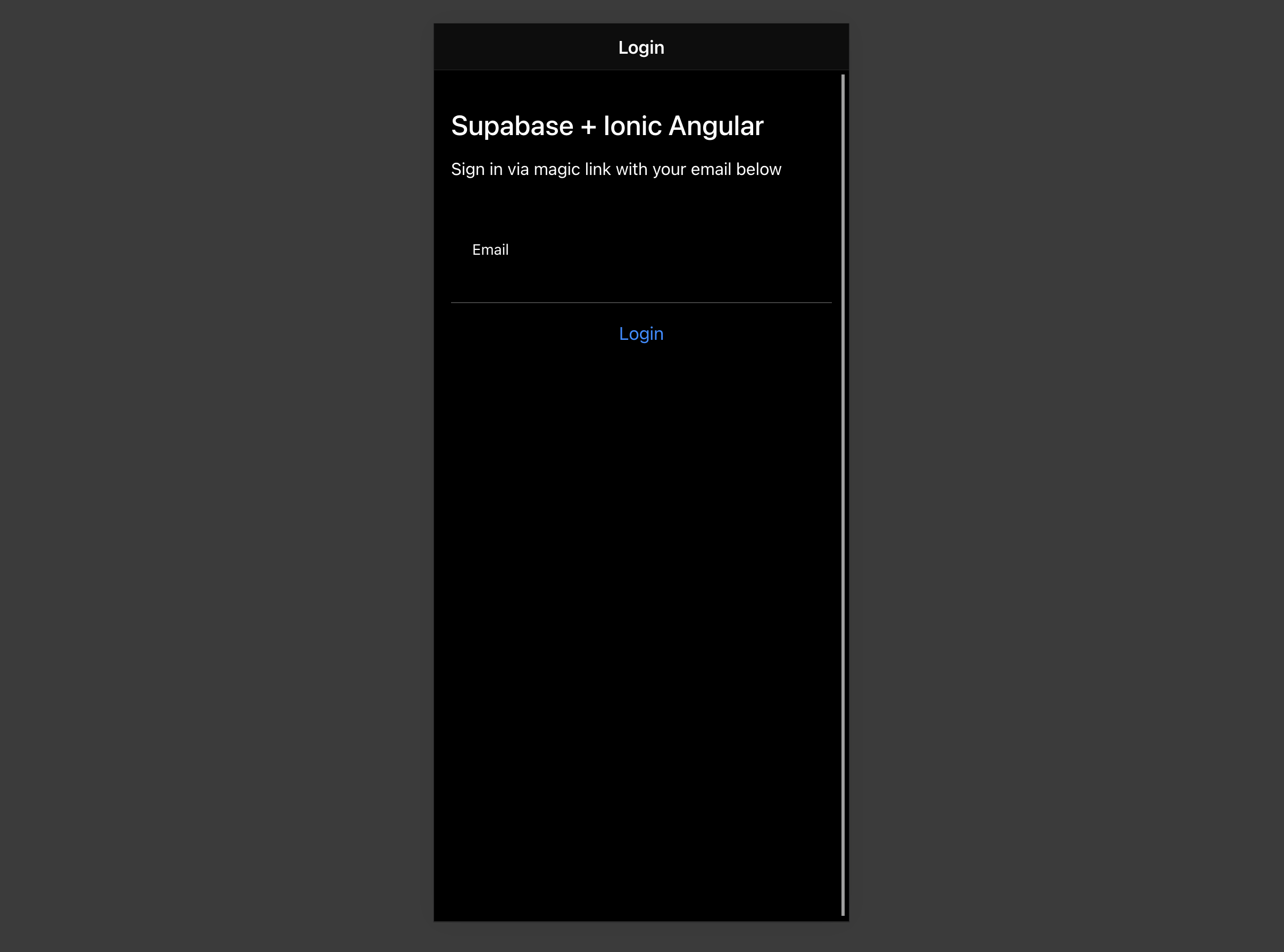

设置一个登录路由 #

🌐 Set up a login route

设置一个路由来管理登录和注册。使用 Magic Links，这样用户可以使用邮箱登录而不需要密码。 使用 ionic g page login Ionic CLI 命令创建一个 LoginPage。

🌐 Set up a route to manage logins and signups. Use Magic Links so users can sign in with their email without using passwords. Create a LoginPage with the ionic g page login Ionic CLI command.

src/app/login/login.page.ts
1
import { Component, OnInit } from '@angular/core'
2
import { SupabaseService } from '../supabase.service'
3
4
@Component({
5
  selector: 'app-login',
6
  standalone: false,
7
  templateUrl: './login.page.html',
8
  styleUrls: ['./login.page.scss'],
9
})
10
export class LoginPage {
11
  email = ''
12
13
  constructor(private readonly supabase: SupabaseService) {}
14
15
  async handleLogin(event: any) {
16
    event.preventDefault()
17
    const loader = await this.supabase.createLoader()
18
    await loader.present()
19
    try {
20
      const { error } = await this.supabase.signIn(this.email)
21
      if (error) {
22
        throw error
23
      }
24
      await loader.dismiss()
25
      await this.supabase.createNotice('Check your email for the login link!')
26
    } catch (error: any) {
27
      await loader.dismiss()
28
      await this.supabase.createNotice(error.error_description || error.message)
29
    }
30
  }
31
}
View source
src/app/login/login.page.html
1
<ion-header>
2
  <ion-toolbar>
3
    <ion-title>Login</ion-title>
4
  </ion-toolbar>
5
</ion-header>
6
7
<ion-content>
8
  <div class="ion-padding">
9
    <h1>Supabase + Ionic Angular</h1>
10
    <p>Sign in via magic link with your email below</p>
11
  </div>
12
    <ion-list inset="true">
13
      <form (ngSubmit)="handleLogin($event)">
14
        <ion-item>
15
          <ion-label position="stacked">Email</ion-label>
16
          <ion-input
17
            [(ngModel)]="email"
18
            name="email"
19
            autocomplete
20
            type="email"
21
          ></ion-input>
22
        </ion-item>
23
        <div class="ion-text-center">
24
          <ion-button type="submit" fill="clear">Login</ion-button>
25
        </div>
26
      </form>
27
    </ion-list>
28
</ion-content>
View source

账户页面 #

🌐 Account page

用户登录后，允许他们编辑个人资料详情并管理账号。使用 ionic g page account Ionic CLI 命令创建一个 AccountComponent。

🌐 After a user is signed in, allow them to edit their profile details and manage their account. Create an AccountComponent with ionic g page account Ionic CLI command.

src/app/account/account.page.ts
1
import { Component, OnInit } from '@angular/core'
2
import { Router } from '@angular/router'
3
import { Profile, SupabaseService } from '../supabase.service'
4
5
@Component({
6
  selector: 'app-account',
7
  standalone: false,
8
  templateUrl: './account.page.html',
9
  styleUrls: ['./account.page.scss'],
10
})
11
export class AccountPage implements OnInit {
12
  profile: Profile = {
13
    username: '',
14
    avatar_url: '',
15
    website: '',
16
  }
17
18
  email = ''
19
20
  constructor(
21
    private readonly supabase: SupabaseService,
22
    private router: Router
23
  ) {}
24
25
  ngOnInit() {
26
    this.getEmail()
27
    this.getProfile()
28
  }
29
30
  async getEmail() {
31
    this.email = await this.supabase.user.then((user) => user?.email || '')
32
  }
33
34
  async getProfile() {
35
    try {
36
      const { data: profile, error, status } = await this.supabase.profile
37
      if (error && status !== 406) {
38
        throw error
39
      }
40
      if (profile) {
41
        this.profile = profile
42
      }
43
    } catch (error: any) {
44
      alert(error.message)
45
    }
46
  }
47
48
  async updateProfile(avatar_url: string = '') {
49
    const loader = await this.supabase.createLoader()
50
    await loader.present()
51
    try {
52
      const { error } = await this.supabase.updateProfile({ ...this.profile, avatar_url })
53
      if (error) {
54
        throw error
55
      }
56
      await loader.dismiss()
57
      await this.supabase.createNotice('Profile updated!')
58
    } catch (error: any) {
59
      await loader.dismiss()
60
      await this.supabase.createNotice(error.message)
61
    }
62
  }
63
64
  async signOut() {
65
    console.log('testing?')
66
    await this.supabase.signOut()
67
    this.router.navigate(['/'], { replaceUrl: true })
68
  }
69
}
View source
src/app/account/account.page.html
1
<ion-header>
2
  <ion-toolbar>
3
    <ion-title>Account</ion-title>
4
  </ion-toolbar>
5
</ion-header>
6
7
<ion-content>
8
9
  // ...
10
11
  <form>
12
    <ion-item>
13
      <ion-label position="stacked">Email</ion-label>
14
      <ion-input type="email" name="email" [(ngModel)]="email" readonly></ion-input>
15
    </ion-item>
16
17
    <ion-item>
18
      <ion-label position="stacked">Name</ion-label>
19
      <ion-input
20
        type="text"
21
        name="username"
22
        [(ngModel)]="profile.username"
23
      ></ion-input>
24
    </ion-item>
25
26
    <ion-item>
27
      <ion-label position="stacked">Website</ion-label>
28
      <ion-input
29
        type="url"
30
        name="website"
31
        [(ngModel)]="profile.website"
32
      ></ion-input>
33
    </ion-item>
34
    <div class="ion-text-center">
35
      <ion-button fill="clear" (click)="updateProfile()"
36
        >Update Profile</ion-button
37
      >
38
    </div>
39
  </form>
40
41
  <div class="ion-text-center">
42
    <ion-button fill="clear" (click)="signOut()">Log Out</ion-button>
43
  </div>
44
</ion-content>
View source

触发！ #

🌐 Launch!

现在你已经准备好所有组件了，更新一下 AppComponent ：

🌐 Now that you have all the components in place, update AppComponent:

src/app/app.component.ts
1
import { Component } from '@angular/core'
2
import { Router } from '@angular/router'
3
import { SupabaseService } from './supabase.service'
4
5
@Component({
6
  selector: 'app-root',
7
  standalone: false,
8
  templateUrl: 'app.component.html',
9
  styleUrls: ['app.component.scss'],
10
})
11
export class AppComponent {
12
  constructor(
13
    private supabase: SupabaseService,
14
    private router: Router
15
  ) {
16
    this.supabase.authChanges((_, session) => {
17
      console.log(session)
18
      if (session?.user) {
19
        this.router.navigate(['/account'])
20
      }
21
    })
22
  }
23
}
View source

然后更新 AppRoutingModule

🌐 Then update the AppRoutingModule

src/app/app-routing.module.ts
1
import { NgModule } from '@angular/core'
2
import { PreloadAllModules, RouterModule, Routes } from '@angular/router'
3
4
const routes: Routes = [
5
  {
6
    path: '',
7
    loadChildren: () => import('./login/login.module').then((m) => m.LoginPageModule),
8
  },
9
  {
10
    path: 'account',
11
    loadChildren: () => import('./account/account.module').then((m) => m.AccountPageModule),
12
  },
13
]
14
15
@NgModule({
16
  imports: [RouterModule.forRoot(routes, { preloadingStrategy: PreloadAllModules })],
17
  exports: [RouterModule],
18
})
19
export class AppRoutingModule {}
View source

完成后，在终端窗口运行这个:

🌐 Once that's done, run this in a terminal window:

1
ionic serve

浏览器会自动打开来显示这个应用。

🌐 And the browser automatically opens to show the app.

Supabase Angular

额外奖励：头像 #

🌐 Bonus: Profile photos

每个 Supabase 项目都配置了 Storage 来管理像照片和视频这样的大文件。

🌐 Every Supabase project is configured with Storage for managing large files like photos and videos.

创建一个上传小工具 #

🌐 Create an upload widget

创建一个头像，这样用户就可以上传个人照片。

🌐 Create an avatar so the user can upload a profile photo.

首先，安装两个软件包来与用户的摄像头互动。

🌐 First, install two packages in order to interact with the user's camera.

1
npm install @ionic/pwa-elements @capacitor/camera

Capacitor 是 Ionic 提供的一个跨平台原生运行时，它可以让网页应用通过应用商店发布，并提供对原生设备 API 的访问。

Ionic PWA 元素是一个辅助包，它用自定义的 Ionic 界面为那些没有用户界面的浏览器 API 提供填充功能。

🌐 Ionic PWA elements is a companion package that polyfills certain browser APIs that provide no user interface with custom Ionic UI.

安装好那些包后，更新 main.ts，增加一次针对 Ionic PWA Elements 的引导调用。

🌐 With those packages installed, update main.ts to include an additional bootstrapping call for the Ionic PWA Elements.

src/main.ts
1
import { enableProdMode } from '@angular/core'
2
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic'
3
4
import { AppModule } from './app/app.module'
5
import { environment } from './environments/environment'
6
7
import { defineCustomElements } from '@ionic/pwa-elements/loader'
8
defineCustomElements(window)
9
10
if (environment.production) {
11
  enableProdMode()
12
}
13
platformBrowserDynamic()
14
  .bootstrapModule(AppModule)
15
  .catch((err) => console.log(err))
View source

然后用这个 Ionic CLI 命令创建一个 AvatarComponent：

🌐 Then create an AvatarComponent with this Ionic CLI command:

1
ionic g component avatar --module=/src/app/account/account.module.ts --create-module
src/app/avatar/avatar.component.ts
1
import { Component, EventEmitter, Input, OnInit, Output } from '@angular/core'
2
import { DomSanitizer, SafeResourceUrl } from '@angular/platform-browser'
3
import { SupabaseService } from '../supabase.service'
4
import { Camera, CameraResultType } from '@capacitor/camera'
5
import { addIcons } from 'ionicons'
6
import { person } from 'ionicons/icons'
7
8
@Component({
9
  selector: 'app-avatar',
10
  standalone: false,
11
  templateUrl: './avatar.component.html',
12
  styleUrls: ['./avatar.component.scss'],
13
})
14
export class AvatarComponent {
15
  _avatarUrl: SafeResourceUrl | undefined
16
  uploading = false
17
18
  @Input()
19
  set avatarUrl(url: string | undefined) {
20
    if (url) {
21
      this.downloadImage(url)
22
    }
23
  }
24
25
  @Output() upload = new EventEmitter<string>()
26
27
  constructor(
28
    private readonly supabase: SupabaseService,
29
    private readonly dom: DomSanitizer
30
  ) {
31
    addIcons({ person })
32
  }
33
34
  async downloadImage(path: string) {
35
    try {
36
      const { data, error } = await this.supabase.downLoadImage(path)
37
      if (error) {
38
        throw error
39
      }
40
      this._avatarUrl = this.dom.bypassSecurityTrustResourceUrl(URL.createObjectURL(data!))
41
    } catch (error: any) {
42
      console.error('Error downloading image: ', error.message)
43
    }
44
  }
45
46
  async uploadAvatar() {
47
    const loader = await this.supabase.createLoader()
48
    try {
49
      const photo = await Camera.getPhoto({
50
        resultType: CameraResultType.DataUrl,
51
      })
52
53
      const file = await fetch(photo.dataUrl!)
54
        .then((res) => res.blob())
55
        .then((blob) => new File([blob], 'my-file', { type: `image/${photo.format}` }))
56
57
      const fileName = `${Math.random()}-${new Date().getTime()}.${photo.format}`
58
59
      await loader.present()
60
      const { error } = await this.supabase.uploadAvatar(fileName, file)
61
62
      if (error) {
63
        throw error
64
      }
65
66
      this.upload.emit(fileName)
67
    } catch (error: any) {
68
      this.supabase.createNotice(error.message)
69
    } finally {
70
      loader.dismiss()
71
    }
72
  }
73
}
View source
src/app/avatar/avatar.component.html
1
<div class="avatar_wrapper" (click)="uploadAvatar()">
2
  <img *ngIf="_avatarUrl; else noAvatar" [src]="_avatarUrl" />
3
  <ng-template #noAvatar>
4
    <ion-icon name="person" class="no-avatar"></ion-icon>
5
  </ng-template>
6
</div>
View source
src/app/avatar/avatar.component.scss
1
:host {
2
  display: block;
3
  margin: auto;
4
  min-height: 150px;
5
6
  .avatar_wrapper {
7
    margin: 16px auto 16px;
8
    border-radius: 50%;
9
    overflow: hidden;
10
    height: 150px;
11
    aspect-ratio: 1/1;
12
    background: var(--ion-color-step-50);
13
    border: thick solid var(--ion-color-step-200);
14
    &:hover {
15
      cursor: pointer;
16
    }
17
18
    ion-icon.no-avatar {
19
      width: 100%;
20
      height: 115%;
21
    }
22
  }
23
24
  img {
25
    display: block;
26
    object-fit: cover;
27
    width: 100%;
28
    height: 100%;
29
  }
30
}
View source

更新账户页面 #

🌐 Update the account page

创建了头像组件后，更新账户页面模板以包含它：

🌐 With the Avatar component created, update the account page template to include it:

src/app/account/account.page.html
1
<ion-header>
2
  <ion-toolbar>
3
    <ion-title>Account</ion-title>
4
  </ion-toolbar>
5
</ion-header>
6
7
<ion-content>
8
  <app-avatar
9
    [avatarUrl]="this.profile?.avatar_url"
10
    (upload)="updateProfile($event)"
11
  >
12
  </app-avatar>
13
  <form>
14
    <ion-item>
15
      <ion-label position="stacked">Email</ion-label>
16
      <ion-input type="email" name="email" [(ngModel)]="email" readonly></ion-input>
17
    </ion-item>
18
19
    <ion-item>
20
      <ion-label position="stacked">Name</ion-label>
21
      <ion-input
22
        type="text"
23
        name="username"
24
        [(ngModel)]="profile.username"
25
      ></ion-input>
26
    </ion-item>
27
28
    <ion-item>
29
      <ion-label position="stacked">Website</ion-label>
30
      <ion-input
31
        type="url"
32
        name="website"
33
        [(ngModel)]="profile.website"
34
      ></ion-input>
35
    </ion-item>
36
    <div class="ion-text-center">
37
      <ion-button fill="clear" (click)="updateProfile()"
38
        >Update Profile</ion-button
39
      >
40
    </div>
41
  </form>
42
43
  <div class="ion-text-center">
44
    <ion-button fill="clear" (click)="signOut()">Log Out</ion-button>
45
  </div>
46
</ion-content>
View source

在这个阶段，你已经有一个完全可用的应用了！

🌐 At this stage, you have a fully functional application!

另请参阅 #

🌐 See also
